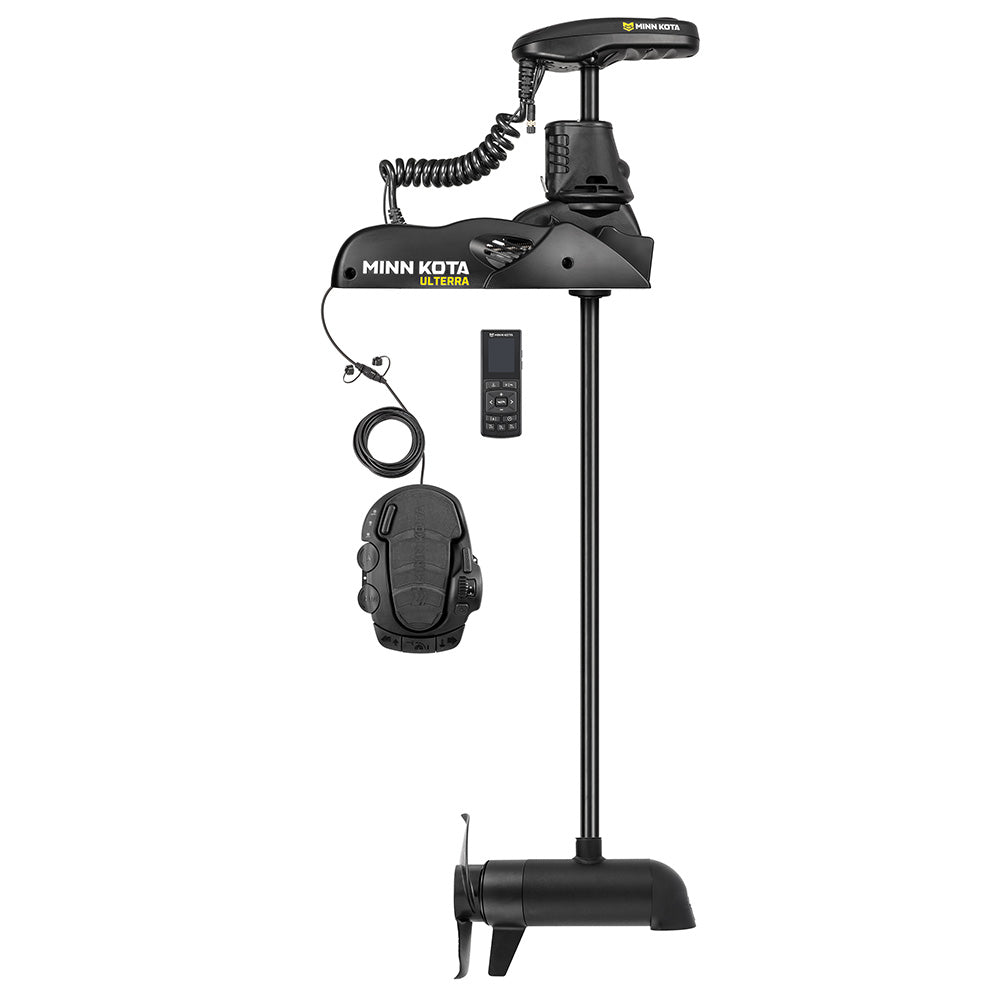

Minn Kota Ulterra 112 DSC/WR, 60-Inch Shaft

Spend less time adjusting your motor and more time fishing with the Minn Kota Ulterra 112. This freshwater bow-mount trolling motor combines 112 lb of thrust, 36V power and a 60-inch shaft with automatic stow/deploy, Power Trim and built-in Dual Spectrum CHIRP sonar.

Deploy the motor at the push of a button, use Spot-Lock to hold over promising structure and adjust motor depth with Power Trim as conditions change. Choose the included wireless remote or programmable heel/toe electric foot pedal to keep boat control close at hand.

Key Features

• Automatic stow and deploy: Raise or deploy the motor using the wireless remote, foot pedal or other compatible connected controls.
• Power Trim: Adjust motor depth electronically without reaching down to the motor.
• Spot-Lock: GPS positioning helps keep your boat over a productive fishing spot.
• Advanced GPS Trolling System: Record paths and manage speed, steering and positioning using supported controls.
• Drift Mode: Combines speed and course control to help manage your drift path.
• Built-in Dual Spectrum CHIRP: Integrated Humminbird sonar keeps the transducer and wiring concealed and protected through the motor shaft.
• Programmable electric foot pedal: Heel/toe control includes stow, deploy and trim functions, a programmable button and an 18-foot cord.
• Shallow-water protection: A clutch system is designed to help protect the motor from accidental bottom strikes.
• Digital Maximizer: Variable-speed power delivery helps conserve battery energy.

Connected Fishing Features

Integrate with compatible Minn Kota or Humminbird fishfinders and supported app controls for additional navigation and motor functions. Draw and Navigate lets you draw a course on a compatible fishfinder for the motor to follow. Follow Mode supports tracking depth contours and weed lines with the required compatible setup.

Intelligent Depth Control uses compatible system data to detect shallow-water conditions and provide alerts, with supported actions such as engaging Spot-Lock or deploying compatible shallow water anchors. These functions assist boat control and do not replace attentive navigation.

A compatible Humminbird sonar display is required to view built-in Dual Spectrum CHIRP sonar. Advanced navigation, wireless integration and anchor-control features depend on compatible equipment, mapping, software and system configuration. Fishfinders and shallow water anchors are sold separately.

Specifications

• Series: Ulterra
• Manufacturer part number: 1358979
• Application: Freshwater
• Maximum thrust: 112 lb
• Voltage: 36V
• Shaft length: 60 inches
• Mounting location: Bow
• Motor style: Electric-steer
• Built-in sonar: Dual Spectrum CHIRP
• Controls: Wireless remote and heel/toe electric foot pedal
• Automatic stow/deploy: Yes
• Power Trim and power steering: Yes
• Spot-Lock and AutoPilot: Yes
• One-Boat Network compatible: Yes
• Speeds: Variable
• Maximum amp draw: 52 A
• Battery meter: Yes
• Digital Maximizer: Yes
• Included propeller: MKP-32

What’s Included

• Ulterra 112 lb trolling motor with 60-inch shaft and built-in Dual Spectrum CHIRP
• Heading sensor
• Foot pedal
• Wireless remote
• Lanyard
• Propeller
• Mounting hardware

Composite Shaft Guarantee

The composite shaft carries a lifetime guarantee.

Product Documents

View the product brochure (PDF)
