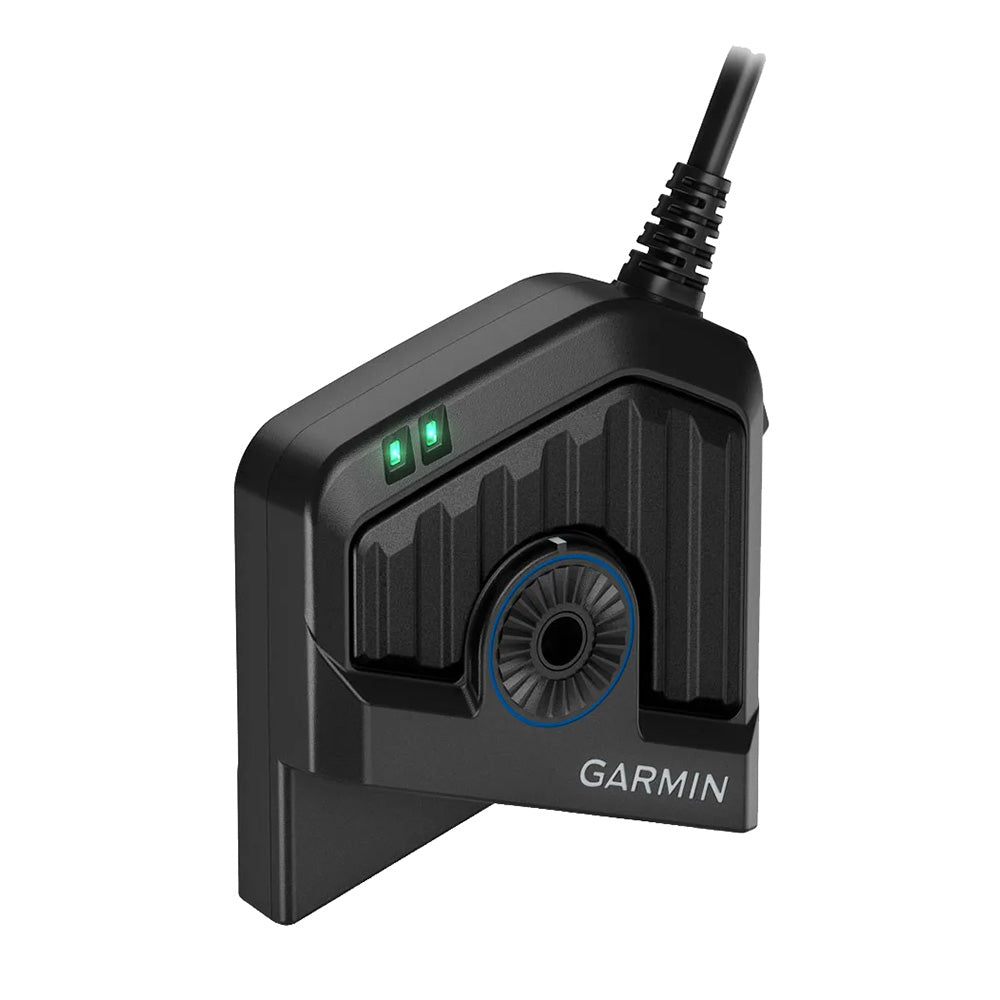

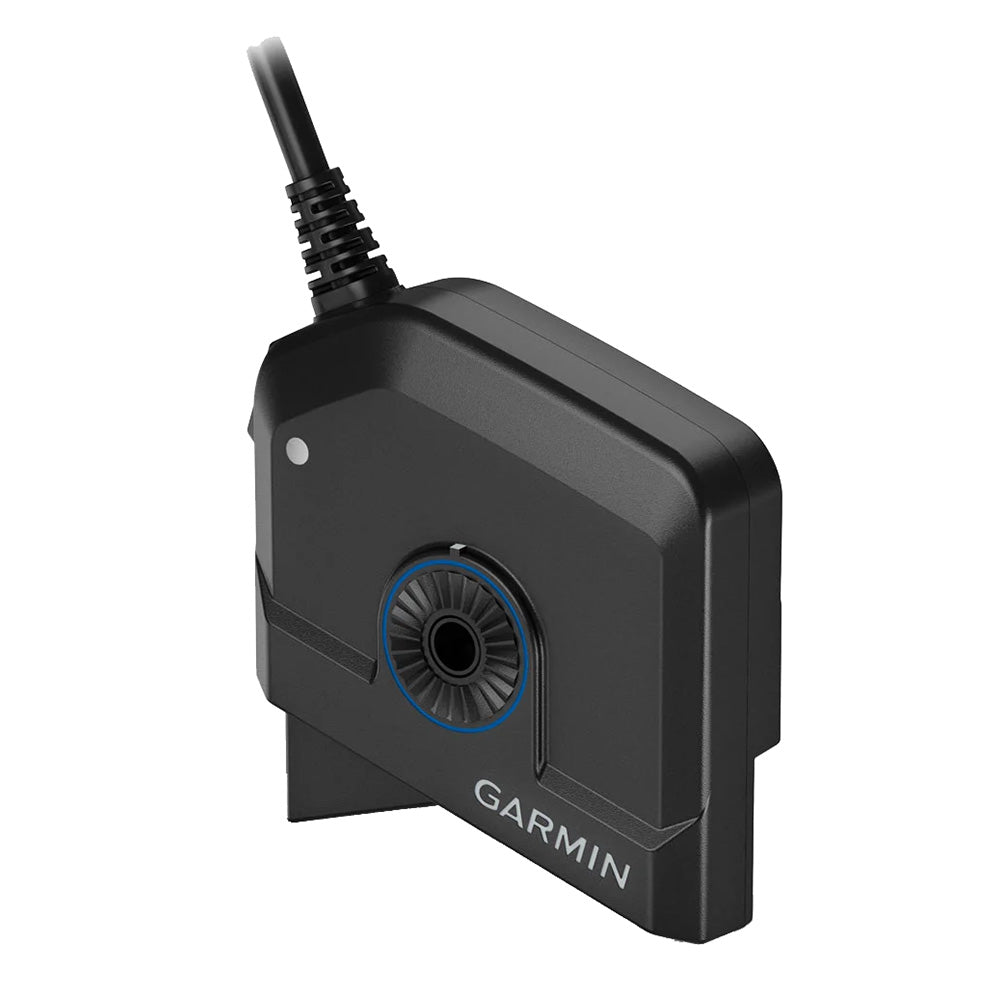

Garmin LiveScope 2 HD Ice Fishing Transducer (LVS42HD-IF)

The sharpest sonar Garmin has ever built — purpose-built for ice fishing. The LVS42HD-IF delivers ultra-high-definition live sonar imagery with integrated image stabilization, no black box required, and bottom tracking out to 125 feet. See fish react to your lure in real time and know exactly when to set the hook.

Key Features

• Up to 50% more detail and 20% higher resolution vs. previous generations
• No black box — connects directly to a compatible chartplotter and power source
• Bottom track to 125 ft with reduced sonar artifacts
• Wider sonar angles in Forward (20° × 165°), Down, and Perspective (20° × 180°) modes
• Water detection auto-shuts off sonar when transducer is out of the water
• Integrated temperature sensor provides readings while submerged
• Flexible cold-weather cable rated for ice fishing conditions
• 15+ vivid color palettes with compatible chartplotter

Specifications

• Transducer cable length: 3 m (9.8 ft)
• Connector: 7-pin
• Compatible: Garmin chartplotters with LiveScope 2 HD support

In the Box

• LVS42HD-IF ice fishing transducer
• 0-degree shaft mount
• All-in-one power/network cable
• Documentation
